MindsDB Integration

Overview

MindsDB is an open-source AI data automation platform that brings AI capabilities directly to your databases. It enables developers to build AI-powered applications using familiar SQL syntax, connecting to over 200 data sources and integrating with various AI frameworks without requiring deep ML expertise.

Ideal for developers and data teams who want to add AI capabilities to their existing data infrastructure without complex ML pipelines or ETL processes.

Key Features

SQL-Based AI: Use standard SQL to create, train, and deploy AI models
200+ Data Connectors: Connect to databases, SaaS apps, file systems, and APIs
Federated Query Engine: Query multiple data sources as if they were a single database
AI Tables: Create virtual tables for models, agents, and knowledge bases
Built-in MCP Server: Native Model Context Protocol support for AI applications
Real-time Processing: Schedule jobs and triggers for automated AI workflows
Model Agnostic: Integrate with OpenAI, Anthropic, Hugging Face, and custom models

Use Cases

Build AI agents that answer questions across federated enterprise data
Create predictive models for business forecasting and analytics
Implement real-time sentiment analysis and text classification
Develop chatbots with access to live database information
Automate data transformation and enrichment with AI
Generate insights from structured and unstructured data

Setup Instructions

Create a directory for MindsDB data persistence:
Terminal window
```
mkdir mdb_data
```

Run MindsDB using Docker with the necessary ports and configuration:

docker run --name mindsdb_container \
  -e MINDSDB_APIS=http,mysql,mcp \
  -p 47334:47334 \
  -p 47335:47335 \
  -p 47337:47337 \
  -v $(pwd)/mdb_data:/root/mdb_storage \
  mindsdb/mindsdb

Access MindsDB interface at http://localhost:47334

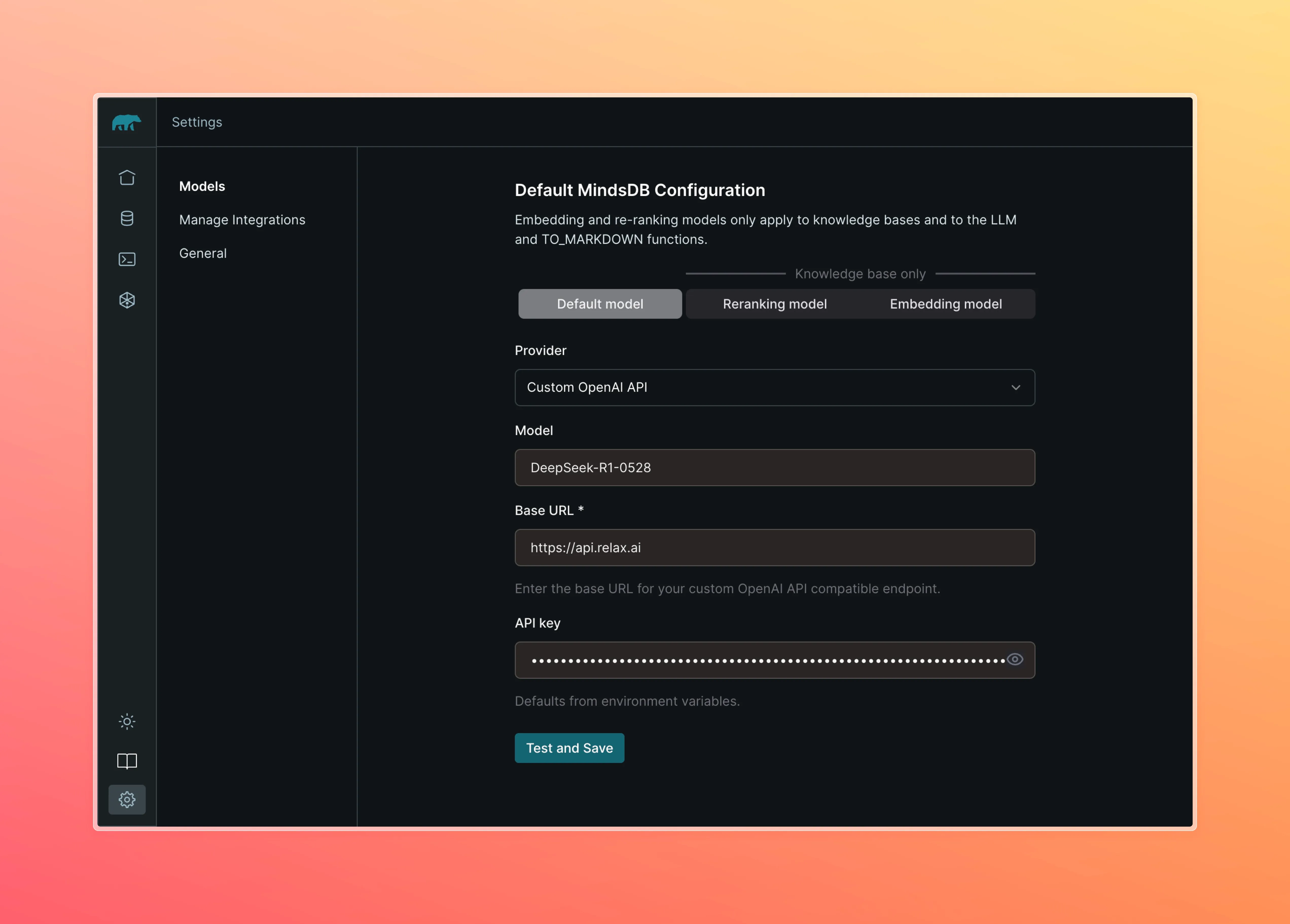

You can either configure MindsDB for a Default, Reranking or Embeddings model via the GUI to connect to RelaxAI or use the SQL editor directly. Make note to refer the correct model names for the RelaxAI API.

mindsdb-config

Configure MindsDB to use RelaxAI by creating an AI engine in the MindsDB SQL editor:

CREATE ML_ENGINE relax_engine
FROM openai
USING
  api_base = 'https://api.relax.ai/v1',
  api_key = 'RELAX_API_KEY';

Create a model using RelaxAI:

CREATE MODEL my_ai_model
PREDICT response
USING
  engine = 'relax_engine',
  model_name = 'Llama-4-Maverick-17B-128E',
  prompt_template = 'Your prompt template here: {{text}}';

Create an agent if you prefer to handle requests and structured responses from your knowledge base, there’s option to connect with multiple external datasources as well. For reference check the official documentation.

CREATE AGENT relax_agent
USING
    model = {
        "provider": "openai",
        "model_name" : "Llama-4-Maverick-17B-128E",
        "api_key": "RELAX_API_KEY",
        "base_url": "https://api.relax.ai/v1"
    },
    data = {
        "knowledge_bases": ["datasource.iris"],
        "tables": ["iris"]
    },
    prompt_template = 'iris is a classic dataset in machine learning, particularly for beginners, containing measurements of iris flowers from three different species: Setosa, Versicolor, and Virginica. Its a multivariate dataset with four features for each flower: sepal length, sepal width, petal length, and petal width, all measured in centimeters';

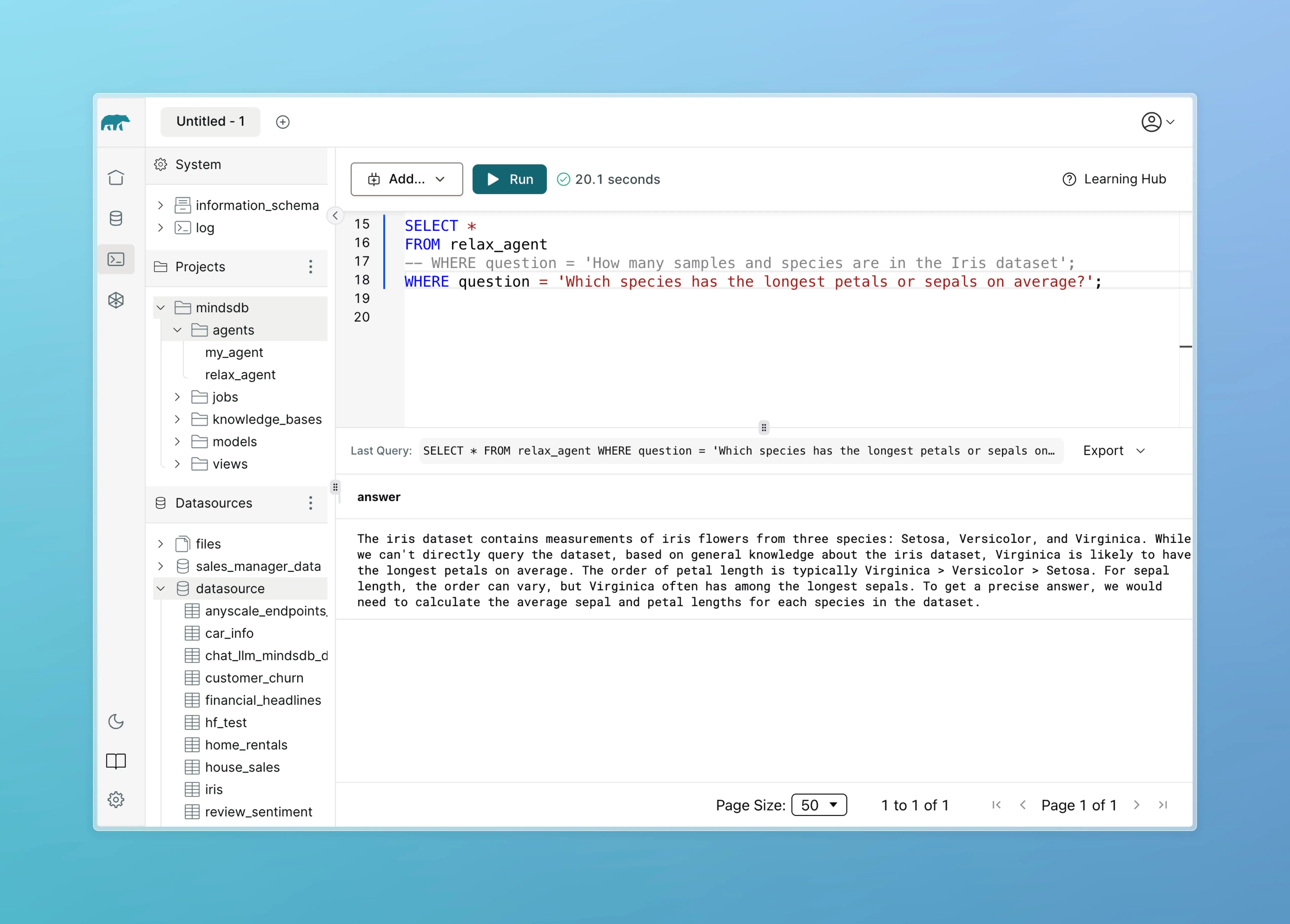

To run the agent and get responses from your dataset in natural language, you can use the following SQL command:
```
SELECT * FROM relax_agent
WHERE question = 'What is the average sepal length of Setosa species?';
```

Configuration Options

Docker Environment Variables:

MINDSDB_APIS: Enable specific APIs (http, mysql, mcp, a2a)
MINDSDB_USERNAME: Set admin username (optional)
MINDSDB_PASSWORD: Set admin password (optional)
MINDSDB_A2A_HOST: Set host for remote access (if needed)

Port Mappings:

47334: HTTP API and Web UI
47335: MySQL wire protocol
47337: MCP server
47338: A2A API (if enabled)

Commands and Usage

MindsDB uses SQL syntax for all AI operations:

Basic Operations:

-- Connect to a data source
CREATE DATABASE my_postgres
WITH ENGINE = 'postgresql',
PARAMETERS = {
  "host": "localhost",
  "port": 5432,
  "database": "mydb",
  "user": "user",
  "password": "password"
};

-- Create a predictive model
CREATE MODEL sales_predictor
FROM my_postgres (SELECT * FROM sales_data)
PREDICT amount
USING engine = 'relax_engine';

-- Make predictions
SELECT * FROM sales_predictor
WHERE date > '2024-01-01';

Advanced Features:

AI Tables: Create agents, models, and knowledge bases as SQL tables
Jobs: Schedule recurring AI tasks with CREATE JOB
Triggers: React to data changes with CREATE TRIGGER
Views: Create unified views across multiple data sources

Working with Data Sources

MindsDB can connect to various data sources:

-- Connect to MySQL
CREATE DATABASE mysql_db
WITH ENGINE = 'mysql',
PARAMETERS = {
  "host": "mysql-server",
  "port": 3306,
  "database": "mydb",
  "user": "root",
  "password": "password"
};

-- Connect to MongoDB
CREATE DATABASE mongo_db
WITH ENGINE = 'mongodb',
PARAMETERS = {
  "host": "mongodb://localhost:27017",
  "database": "mydb"
};

-- Query across multiple sources
SELECT m.*, p.*
FROM mysql_db.users m
JOIN postgres_db.orders p
ON m.user_id = p.user_id;

Best Practices

Use persistent volumes to maintain data between container restarts
Install only required integrations to keep the container lightweight
Test models with small datasets before running on production data
Use jobs for scheduled AI tasks instead of external schedulers
Monitor resource usage as AI operations can be compute-intensive
Leverage views to simplify complex multi-source queries

Troubleshooting

Container not starting: Check if ports 47334-47338 are available
Connection refused: When connecting integrations in other containers, use http://host.docker.internal instead of localhost
Model errors: Verify API credentials and endpoint configuration
Missing dependencies: Install integration dependencies via Settings → Manage Integrations in the UI
Performance issues: Consider using MindsDB Cloud for production workloads
